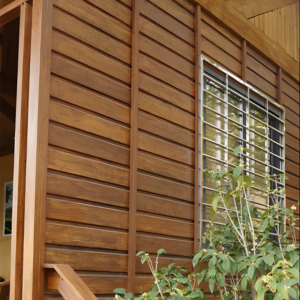

Strand woven bamboo use as exterior Wall Clading and Facade board is a sustainable, stylish and durable choice in commercial building and home and yard. If you are looking for a long -lasting and low-maintenance wall panelling to replace traditional siding materials to your building or your home , then outdoor bamboo siding just is a correct choice for you...because of its easy installation and flexibility in terms of installation, which can be installed in Horizontally or Vertically as design need, which can fix to concrete wall directly with concrete nail , also can fastener the wall panels which has T&G clips easity with stainless steel lockups. This allows each customer is able to DIY create unique and personalized wall pattern, or fence design specially. |
|

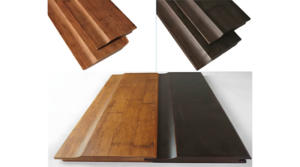

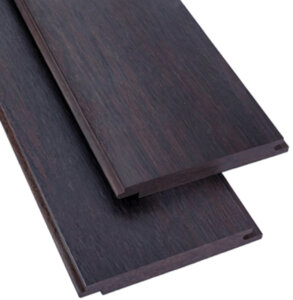

FRbamboo supply 2 Series of Deep Carbonized color and Standard Carbonized color wall panels as choice : |
 |
 |
 |
 |
 |
 |
 |
|
FRbamboo Outdoor composited bamboo wall panels another important reason for your choice is even longer life span to 25 year |
|
• 25 Years Warranty |
|
• Hard & durable |
|
• Anti-corrosion & Anti-Cracking |
|
• Dimensionally stable |
|
• Not warp or buckle |
|
• Weather resistance |
|
• Moth-Proofing |
|
• Mold-Proofing |
|
• Easy to install |
|
• Ultra-long service life |
|
|
|

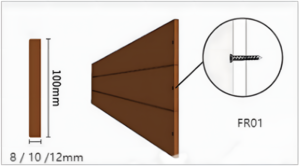

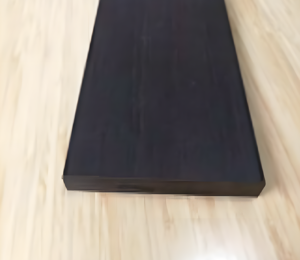

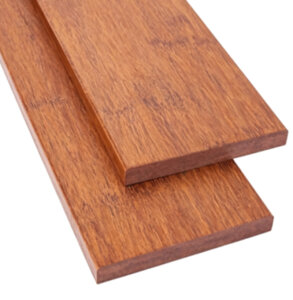

For thin wall panels of thickness 8mm and 10mm, normal it fix with concrete nail directly : |
|
Outdoor Strand Woven Clading and Facade Panels |
|
1. |
1860 x 103 x 8mm / 10mm / 12mm |
|
Sides shape: |
four sides flat |
|
Installation: |
Directly Screws on the center of deck end. |
|
Finish: |
Outdoor grade - Water- baseed Woca Oiled or Paint |
 |
 |
|
very easy for installation just with screws. |
|
|
|

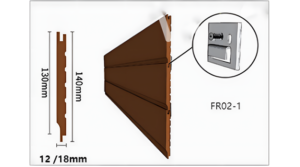

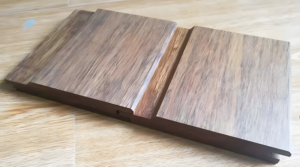

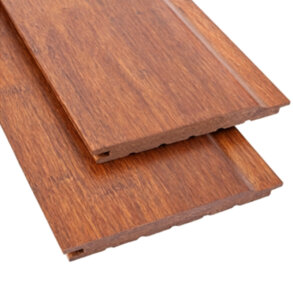

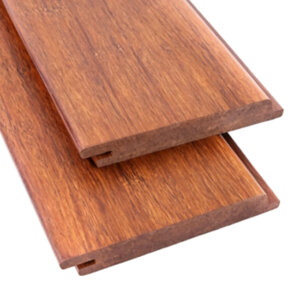

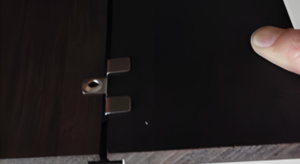

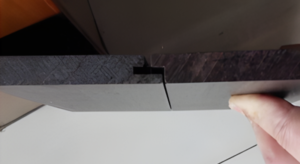

For thick wall panels of 12mm , it fixed with T&G clicks links. one side grooved, one side card slot or T&G locks |
 |
 |
|
|
|

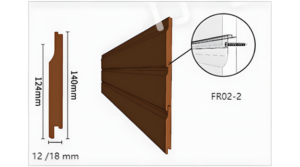

For 18mm wall panels, there are two traditional design with rain screen design for raining drainage need. |
|
This design make sure wall panels not soaked in water and avoid corrosion or mildew. |
|
|
|
2. |
1860 x103 x 12mm and 1860/2000/2500 x 139 x 18mm |
|
Sides Shape: |
one side grooved, one side card slot or T&G locks |
|
Installation: |

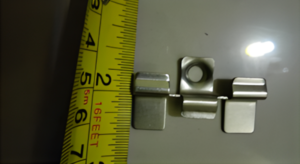

Stainless Steel Clips |
|
Finish: |
Outdoor grade - Water- baseed Woca Oiled or Paint |
 |
 |
|
With rainscreen design which is perfect for raining drainage purpose. |
|
|
 |
 |
|
|
|

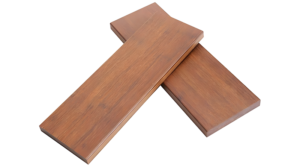

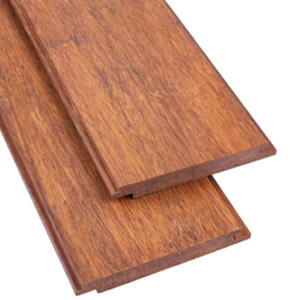

Bamboo wall cladding is crafted from high density composited strand woven bamboo, produced for exterior and outdoor |
|
Wall facade board and exterior wall decorative board. |
|
it has the complete characteristics high density, super strong, high hardness, low formaldehyde emission. |
|
Bamboo wall cladding is true alternative to non-sustainable rain forest hardwoods. |
|
We are professional on outdoor wall covering bamboo produce, see more details as about exterior bamboo wall cladding : |
|
there are sizes of wall cladding available as: |
|
1860 x 103 x 8 mm |
|
1860 x 103 x 10 mm |
|
1860 x 103 x 12 mm |
|
1860 x 140 x 18mm |
|
2000 x 140 x 18mm |
|
2500 x 140 x 18mm |
|
As wall facade board, the surface finish normal is flat finished. |
|

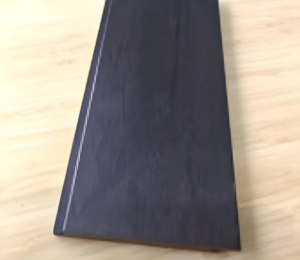

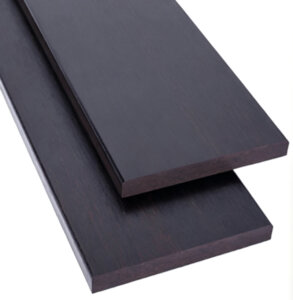

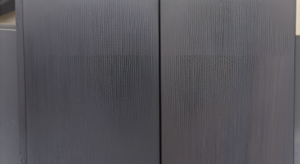

And Deep carbonized ( black color ) is very hot choice as wall facade board, because deep carbonized treatment has extremely high grade on mildew resistant. |
|
|
|
Size of
wallboard: |
 |
 |
|
1860*100*8 |
|
1860*100*10 |
|
1860*103*12 |
|
1860*139*18 |
Wallboard:1860*103*12mm |
Wallboard:1860*100*10mm |
|
|
|

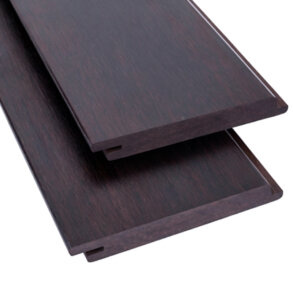

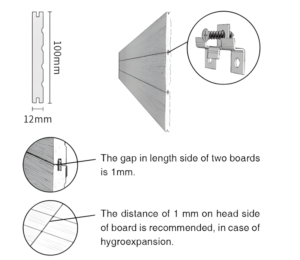

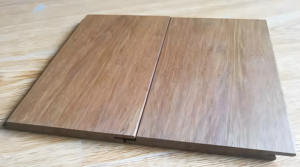

FRbamboo wall board 1860 x 103 x 12mm is the most welcome composited bmaboo wall panels as facade board, first it is not too thin has risk for bending also not too thick too heavy, it is can be produce with flat edges for simple fix with gun nails. Also can produce with male and female click locks to install with screws only. |
 |
 |
 |
 |
 |
|
|
|

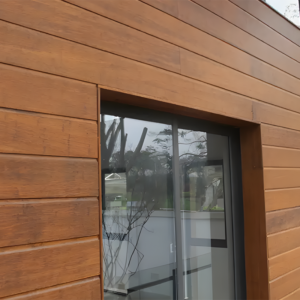

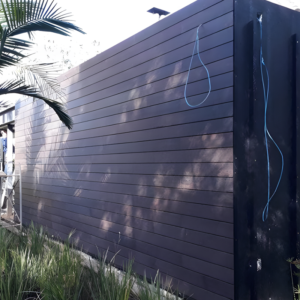

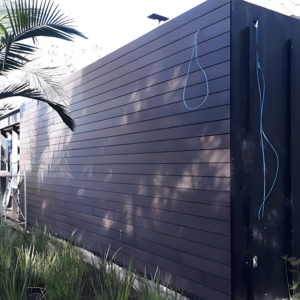

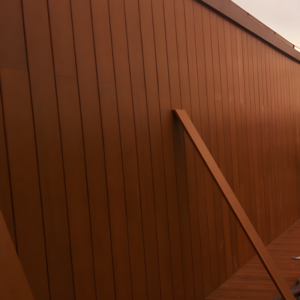

1860 x 103 x 12mm composited bamboo wall board used in projects as refer : |
|
|
|

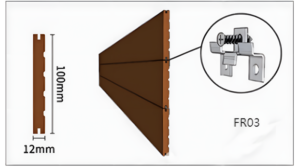

FR03 installation : |
 |
 |
 |
|
|
|
Some Cautions when install the exterior wall panels : |
|

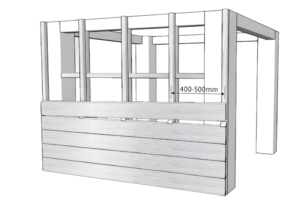

Need attention that the correct order of wall installation should be bottom-up. |
|
First of all ,the first wall panel should be fixed on the bottom joist of the wall which needs to be installed, at the same time, the raised part of the clips are embedded in the groove of the wall panel and locked with screws. |
|

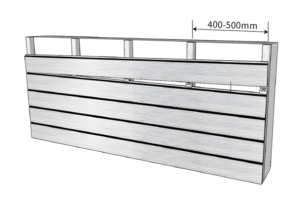

The distance between the joists must be between 400 to 500mm, by a wall cladding of 1860mm length need minimum 5 joists. |
 |
 |
 |
 |
 |
|
Wall panels can be installed in Horizontally or Vertically as design need . |
|
Maintenance Manual for Bamboo Wall Cladding : |
|
First maintenance is required directly after installation, afterwards six months one time suggested. Apply outdoor water-based oil after cleaning up the surface. |
|
Select suitable tool for cleaning according to the fixing scale. |
|
1. Clean the wall panels: wash it with water or use special cleaner to get rid of dirt then clean it with brush. |
|
2. Make sure the wall panels get dry naturally and apply outdoor water-based oil. |
|
3. Protect the maintained area until oil gets dry naturally. |
|

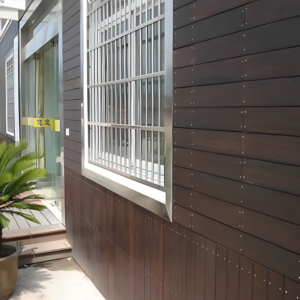

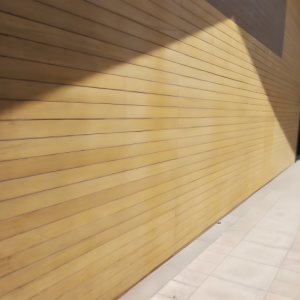

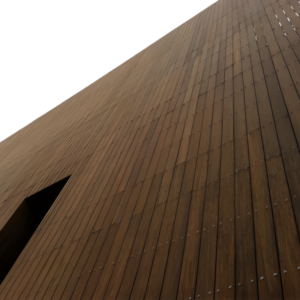

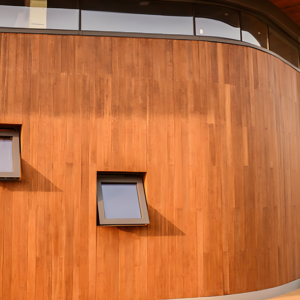

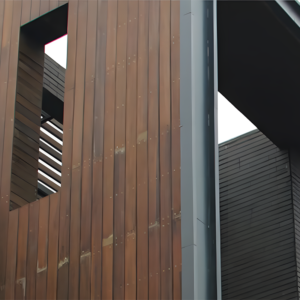

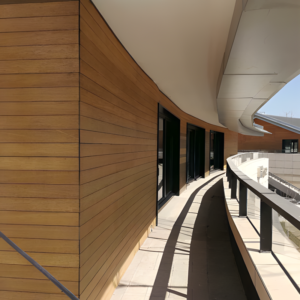

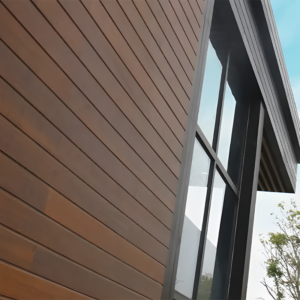

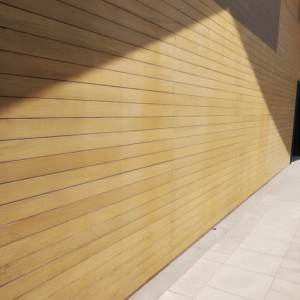

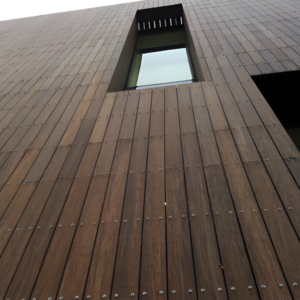

Some projects finished with composited bamboo facade board for refer : |
 |
 |
 |
 |
 |
 |
 |
 |
