| Bamboo horse stable planks are made of high-density composited bamboo also called strand woven bamboo or high density bamboo planks, such bamboo horse stable planks features a tight, uniform composited bamboo fiber structure, it is a good alternative for the horse stable construction , It is solid with integrated tongue & groove machining on the edge, which enables seamless assembly.The composited bamboo retains natural bamboo fiber texture while being high pressured processed to high stability , high durability , high strength but eco - friendly and resist mold, insect infestation materials for horse stable construction. | ||
| FRbamboo are factory to tailored custom sizes horse stables planks according to project requirement with a Thickness 28–40 mm, | ||

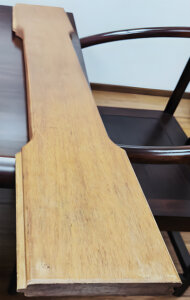

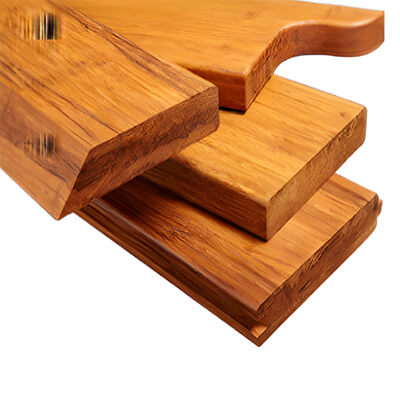

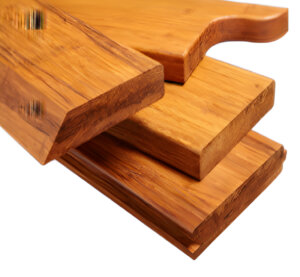

| Outdoor Composited Bamboo Horse Stable Planks | ||
 |

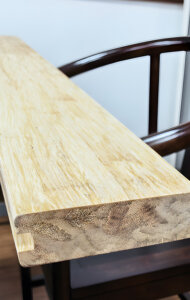

Outdoor Grade Strand Woven Bamboo Boards for Horse Stable and Horse Barn | |
| Surface Treatment: | Carbonized & Stained water-based outdoor grade Kora Oiled or Woca oiled | |
| Size: | ||
| 930*140*30 mm | ||
| 930*140*40 mm | ||
| 1100*140*30 mm | ||
| 1100*140*40 mm | ||
| 1250*140*30 mm | ||
| 1250*140*40 mm | ||
| 1860x 140x32 mm | ||
| 1860 x 140 x 28mm | ||
| Sides: | Tongue and Groove | |
| And to supply Caramel color （light brown , medium brown to dark brown and Natural color as customized require. | |
 |
 |
| Advantages of strand composited bamboo horse box planks | |
| 1. High durability & impact resistance: | Denser than ordinary timber, it can withstand repeated impact from horses, with long service life 20-25 years up . |
| 2. Low moisture deformation: | Good dimensional stability, less prone to warping or cracking in humid stable environments. |
| 3. Animal-safe: | No loose wood fragments, protects horse skin and hooves. |
| 4. Eco-friendly material: | Bamboo is a fast-renewable resource; meets EU timber regulation requirements. |
| 5. Easy installation & maintenance: | Tongue and groove connection for quick mounting; easy to clean and sanitize. |
| 6. Based on conventional bamboo panels, all cutting ends are fully sealed with professional anti-corrosion sealing paint. This style completely solves the problem of water absorption and delamination at the board ends, greatly extending the service life. It is the preferred upgraded version for high-end stable projects and long-term investment equestrian facilities. | |
| Styles of Heavy Bamboo Horse Stable Panels | ||||

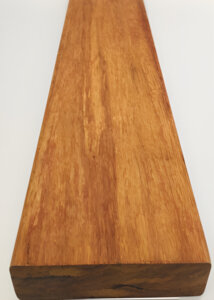

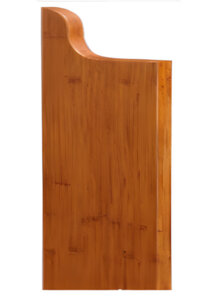

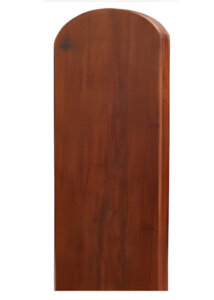

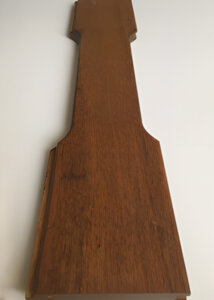

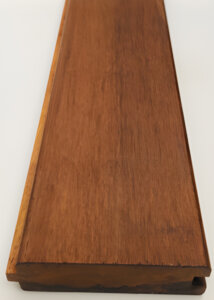

| Bamboo Board styles for Horse stable need : | ||||
 |
 |
 |
 |
 |
| Solid Flat Bamboo Stable Panel (Standard Style is the most most widely used classic stable board. Adopting an integral solid flat structure with a smooth and uniform surface, it provides strong anti-kick performance and easy daily cleaning | ||||
| Solid flat stable panel with T &G Groove wit No air vent | ||||
| Solid flat stabel panel with T&G groove with air vent | ||||
| Other designed with vertical bamboo panel style, this style combines practicality and aesthetics to suite each farm and horse stable style | ||||

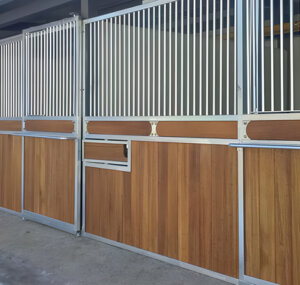

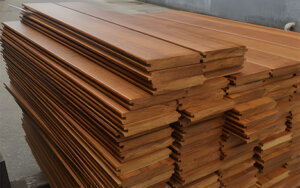

| Strand Woven bamboo board used in horse stable / without air vent. | ||||
 |
 |
|||
 |
||||

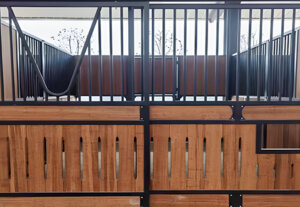

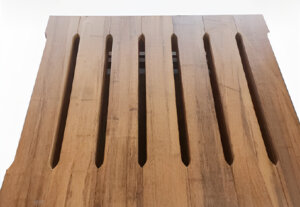

| Strand Woven bamboo board used in horse stable / with air vent. | ||||
 |
 |
|||
| Installation Steps for high Density Bamboo Horse Stable Panels | ||||
| Suitable for tongue & groove (tenon and groove) bamboo stable planks | ||||
| 1. Site Preparation | Check the supporting frame, ensure the studs are straight, level and firmly fixed. | |||
| 2. First Panel Mounting | Place the first bamboo stable panel against the marked line. Keep the groove side facing the direction of subsequent panels. Pre-drill holes on the board at designated positions to avoid cracking, then fasten it onto the support frame with corrosion-resistant screws. | |||
| 3. Sequential Panel Assembly | Insert the tongue of the next panel into the groove of the installed board. Tap gently with a rubber mallet to make the joint tight and seamless. | |||
| 4. Gap & Alignment Check | Inspect all joints to guarantee even gaps and flat board surface. | |||
| 5. Edge Trimming & Finishing | Cut panels to fit corners, door openings or end sections. Sand cut edges smoothly. Apply exterior wood/bamboo protective coating on cut surfaces to prevent moisture intrusion and mould growth. | |||
| 6. Final Inspection & Clean-up | Check all screw fastenings for stability. | |||
| Service Life of Composited Bamboo Horse Stable Panels: | ||||
| For High-quality hot-pressed composited bamboo specially for horse stables with a density : | ||||
| Density ≥1100kg/m³, PF phenolic resin glue, and end sealing coating and with proper maintenance , our strand bamboo planks can have a long service life of 20～25 years; | ||||
| Core factors affecting service life | ||||
| Frist is Adhesive choice | ||||
| 1. ✅ PF phenolic resin glue: | Resistant to urine alkali and humid heat, preferred for horse stables. | |||
| 2. ❌ E0 urea-formaldehyde glue: | Easily hydrolyzes, delaminates and fails within years when exposed to horse urine and damp conditions. | |||
| Second is take care during installation | ||||
| 1. Cut ends must be sealed with special wood wax oil or sealing paint. | ||||
| 2. Leave ventilation gaps underneath panels; do not install tightly against the ground to avoid trapped moisture. | ||||
| 3. Use stainless steel fasteners to prevent rust stains contaminating the panels. | ||||
| Third is Routine maintenance | ||||
| Rinse manure and urine promptly; avoid prolonged soaking of panels. | ||||
| Clean and re-coat with wood wax oil / heavy bamboo protective oil every 1–2 years. | ||||
| Minimize horse chewing and hard kicking . | ||||
| FRbamboo composited bamboo horse stable plank is all with high density 1150 -1180 kgs / m3, PF resin which is perfect for high level require horse box construction , and we supply from my factory to one -stop export service for you at very competitive price. We treat our bamboo horse box panels extremely suitable for indoor / semi-outdoor / outdoor stables. Please feel free to contact us any time for any support or inquiry you have. | ||||
