Strand woven bamboo / Composited bamboo with high density 1200 kgs /m3 and undergoes high temperature carbonization treatment, coated with outdoor grade water basic oil, resisting outdoor issues like sunlight exposure, rain erosion, mold, and termites. It is more long lasting than ordinary wood it usually use as decking and wall facade board, also very popular use as Bench top in outdoor park, beach public area. |
|

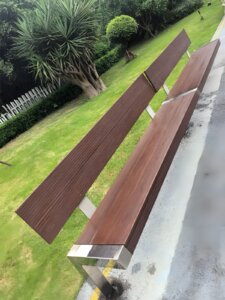

Stand woven board features a sleek ,modern design as the bench seat and backrest, paired with sturdy stainless steel support frames. The bamboo surface has fine vertical grooves for anti slip performance, while the metal frame delivers stable structural support. Its minimalist shape suits parks, residential landscapes, and garden walkways perfectly. |
 |
 |
|
Dimensions (Standard Reference) |
|
• Overall Length: 180–250 cm |
|
• Seat Width: 42–50 cm |
|
• Seat Height: 45 cm |
|
• Backrest Height: 80–90 cm(Can be customized according to project requirements) |
|
Properties |
|
• Material: |
Carbonized high density bamboo (seat & backrest) + stainless steel frame |
|
• Surface Finish: |
Anti slip grooved texture, waterproof outdoor coating |
|
• Color: |
Coffee brown (carbonized bamboo natural tone) |
|
• Service Life: |
10–15 years under normal outdoor conditions |
 |
 |
|

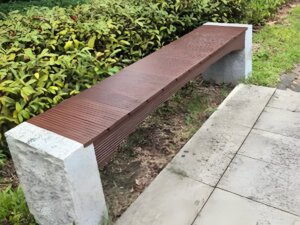

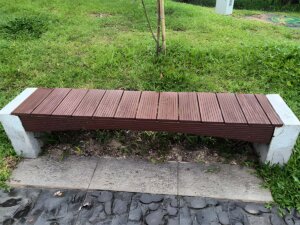

Composited bamboo bench seat with granite bench stand , such long bench delivers warm, wood like natural grain, while granite presents rough, minimalist stone texture. The contrast between soft bamboo and hard stone creates a high grade natural style, perfectly matching outdoor garden, lawn and pedestrian path landscapes, community green belts, garden trails, park landscapes, resort leisure zones. |
|
Bamboo is a fast growing renewable green resource, eco friendly and pollution free. Granite is natural stone with stable physical properties. Both materials are non toxic and harmless, conforming to the environmental concept of modern outdoor public facilities. |
|
|
|
Strand woven bamboo timbers / slats for bench seat and backrest suitable for many zones and beach . |
|
Composited bamboo slats are processed with flat surface, offering comfortable seating touch. Compared with cold pure stone benches, bamboo avoids over cold or over hot temperature issues in different seasons, improving user comfort significantly. |
 |
 |
|
And Strand woven (heavy) bamboo strips have ultra high density and compact internal structure. They strongly resist erosion from sea salt spray, humid air, strong sunlight and UV radiation common at beaches. Treated with outdoor grade water based oil, they prevent corrosion, mildew and rot far better than ordinary solid wood in coastal conditions. |
|
Dense bamboo strands minimize water absorption. Seawater or rainwater drains quickly without soaking into the wood. This avoids swelling, warping and surface damage, keeping the bench stable even in wet beach conditions. |
 |
 |
 |
 |
 |
 |
|

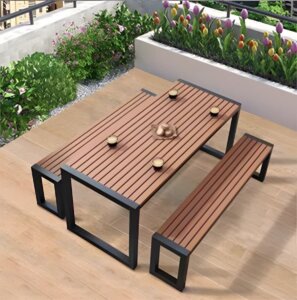

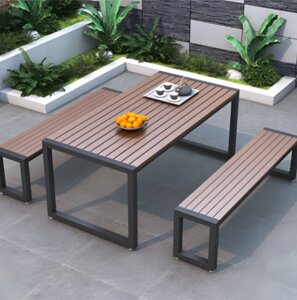

Strand bamboo slats table top and bench seat plus simplified black steel frame to make specific outdoor long table and bench set , it is specially designed for balconies, terraces, courtyards and open air leisure areas. It adopts high quality high density composited for tabletop and bench surface, matched with sturdy black metal square frame supports. The minimalist rectangular structure delivers modern industrial style, ideal for outdoor dining, afternoon tea and casual gatherings. |
|
Long table size : 140 x 70 x 75cm |
|
Bench sets： 108 x 30 x 45 and 128* x 30 x 45 |
|
|
|
Features and advantages for strand woven bamboo long table and bench as outdoor furniture sets : |
|
Strand woven bamboo slats coated with outdoor grade water basic oil which is excellent Outdoor Weather Resistance ,mildew proof and termite resistant. It won’t crack, fade or deform under long term outdoor exposure, suitable for all weather use, it is long -life span under regular maintain. |
|
Low Maintenance & Easy to CleanNon absorbent surface resists stains and water marks. It can be cleaned simply with a damp cloth, no frequent painting or polishing required. |
|
High Load Bearing & DurableSolid metal frame and dense wood plastic slats provide strong weight capacity, wear resistant for long time service. |
|
Comfortable for Leisure Use Flat wide tabletop and bench surface offer comfortable seating and dining experience, perfect for enjoying outdoor coffee, meals and relaxing time. |
|
Perfect for choices for Balconies, terraces, courtyards, rooftop gardens, outdoor leisure zones. |
|
|
|
FR bamboo High density composited bamboo slats and lumbers available in colors from \ |
|
Ligth Carbonized to Deep carbonized ( Black color). |
 |
|
|
|
Techinical Data |
Testing Result |
Testing
Standard |
|
Moisture content |
Ave.: 9.0% |
GB/T 30364-2013 Section
6.3.3 |
|
& |
|
GB/T 17657-2013 Section 4.3 |
|
Hardness |
Everage : 129 HB(N/mm2)
|
EN 1534:2010 |
|
Slip resistant classifcatioin |
Average (SRV) : 34, P2 |
Tests were carried out in accordance with Apendix A AS 4586:2013. |
|
the classification is based on a test in the wet condition |
|
Coeffcient offriction obtained from: AS/NZS 36611:1993 Slip Resistance of Pedestrian Surfaces. |
|
Fire Retardant Classification |
Classification: B-s1, d0 Fire classification of construciton |
EN13501-1:2018 Fire Classificatioin of construction products and building elements - part 1: classification using data from reaction to fire tests |
|
Flamed spread Index |
Class A |
ASTM-E84 |
|
Glue |
D3 water Resistant |
|
|
Formaldehyde essimion |
Less than 0.1mg/L |
With reference to : |
|
GB/T 17657 2013 Section 4.59 |
|
Swelling in thickness
after immersion in water |
0.4% |
EN 317:1993 |
|
Bending Strength and
Modulus(Four-point bending) |
Bending strength:
127.7MPa |
Refer to EN 408:2010+A1:2012
Section 10 & Section 19 |
|
Anti-Fungi Testing |
Elasticity modulus: |
Refer to EN 408:2010+A1:2012
Section 10 & Section 19
JC/T 2039-2010 Antibacterial and Mildew- proof wooden boards for decoration Appendiex B: Mildew resistance test method |
|
17068MPa 0 rating - No fungi growth apperante under 50 times magnification with a test condition : 28 days, 90% RH, 28℃ |
|
Crossion Resistance
and |
GradeⅠ (
Strong corrosion Resistance ) |
GB/T 13942.1-2009 The corrosioin
resistanttest method |
|
Blue Stain Resistance |
Class 0 |
EN 152 |
|
|
|
How to install for Composited Bamboo Outdoor Bench ? |
|
Tools Required |
|
Electric drill, wrench, level, measuring tape, expansion bolts, screwdriver |
|
Step 1: Site Preparation |
|
Choose a flat, solid ground surface (asphalt, concrete or compacted hard ground). Clear debris and level the installation area with a level tool to ensure no unevenness. |
|
Step 2: Position the Bench Frame |
|
Place the stainless steel support frame of the composited bamboo bench at the target position. Adjust its angle and position, and check that the frame is horizontal and stable using a level. |
|
Step 3: Drill Fixing Holes |
|
Mark the hole positions on the ground through the reserved mounting holes of the metal base. Drill holes of appropriate depth and diameter with an electric drill, then insert expansion bolts. |
|
Step 4: Secure the Metal Frame |
|
Tighten the expansion bolts with a wrench to firmly fix the stainless steel frame to the ground. Shake the frame slightly to test its stability and ensure no looseness. |
|
Step 5: Install Heavy Bamboo Slats |
|
Align the pre drilled holes of heavy bamboo seat and backrest slats with the mounting holes on the metal frame. Fasten them with anti rust screws one by one. Keep the slats evenly spaced during installation. |
|
Step 6: Adjust & Tighten All Parts |
|
Check all connecting screws and bolts. Tighten loose fasteners. Adjust the position of bamboo slats to keep them neat and aligned. |
|
Step 7: Final Inspection |
|
Wipe the bench surface clean. Test the overall stability by sitting on it. Confirm no wobbling, cracks or loose parts, then the installation is completed. |
